FUSE workshop — D3D Summer School

Runnable notebook: d3d_workshop.ipynb

One notebook, the whole workshop: an idealized DIII-D run, a constrained multi-objective optimization (CMOOP), its analysis, the audience challenge, and the public EPED API.

• FUSE docs: https://fuse.help — FPP database explorer: https://fuseexplorer.com
• EPED explorer + API: https://iter.fuseexplorer.com/EPED

Kernel: Julia FUSE 1.12 (project preset — just run the cells).

Note on data: the run databases this notebook reads (../runs/d3d_cmoop_summerschool, ../runs/d3d_cmoop_big, ...) are not included in the repository — they are a few GB of FUSE simulation output. If you would like them to play with, email tslendebroek@ucsd.edu and I'll happily share them.

Idealized DIII-D: a single FUSE run

This is the starting point for the CMOOP study in 02_d3d_cmoop.jl: one self-consistent stationary DIII-D simulation, so we understand what the optimizer will be running hundreds of times.

Run with: julia –project=../FUSE

The two core input structures in FUSE: ini — "how do we start" : machine description + initial plasma guesses act — "how do we model" : the knobs of every actor (model choices, settings) and everything lives in dd, the IMAS data dictionary.

using Plots
using FUSE

Load the idealized DIII-D case

:default loads the DIII-D machine description + an equilibrium ODS, and (since there are no experimental profiles/sources) sets up an idealized plasma: 3 neutral beams (co / counter / off-axis), 1 EC launcher, Zeff=2 with carbon impurity.

ini, act = FUSE.case_parameters(:D3D, :default);

# Have a look around — ini is organized in sections;
# highlighted are the ones we'll play with today:
for name in keys(ini)
    if name in (:equilibrium, :core_profiles)
        printstyled("  ▶ ini.", name, "\n"; bold=true, color=:cyan)
    else
        println("    ini.", name)
    end
end

# ...and each section prints nicely:
ini.equilibrium
ini.core_profiles

    ini.general
    ini.time
    ini.ods
  ▶ ini.equilibrium
  ▶ ini.core_profiles
    ini.pf_active
    ini.rampup
    ini.nb_unit
    ini.ec_launcher
    ini.pellet_launcher
    ini.ic_antenna
    ini.lh_antenna
    ini.hcd
    ini.build
    ini.center_stack
    ini.tf
    ini.oh
    ini.bop
    ini.requirements





core_profiles
├─ plasma_mode{Symbol} ➡ :H_mode Plasma configuration [:H_mode, :L_mode]
├─ w_ped{Float64} ➡ 0.05 Pedestal full width expressed in fraction of rho_tor_norm (NOTE: different from EPED 1/2 width as
│  fraction of psi)
├─ ne_value{Float64} ➡ 0.5625 Value based on setup method
├─ ne_setting{Symbol} ➡ :greenwald_fraction_ped Way to set the electron density [:ne_ped, :ne_line, :greenwald_fraction,
│  :greenwald_fraction_ped]
├─ ne_sep_to_ped_ratio{Float64} ➡ 0.25 Ratio used to set the sepeartrix density based on the pedestal density
├─ ne_core_to_ped_ratio{Float64} ➡ 1.4 Ratio used to set the core density based on the pedestal density
├─ ne_shaping{Float64} ➡ 0.9 Density shaping factor
├─ Ti_Te_ratio{Float64} ➡ 1.0 Ti/Te ratio
├─ Te_shaping{Float64} ➡ 1.8 Temperature shaping factor
├─ Te_sep{Float64} ➡ 80.0 [eV] Separatrix temperature
├─ Te_ped{Float64} ➡ missing Pedestal temperature
├─ Te_core{Float64} ➡ missing Core temperature (NOTE: `Te_core` can be calculated from `ini.equilibrium.presssure_core`)
├─ zeff{Float64} ➡ 2.0 Effective ion charge
├─ rot_core{Float64} ➡ 60000.0 [s^-1] Derivative of the flux surface averaged electrostatic potential with respect to the
│  poloidal flux, multiplied by -1. This quantity is the toroidal angular rotation frequency due to the ExB drift,
│  introduced in formula (43) of Hinton and Wong, Physics of Fluids 3082 (1985), also referred to as sonic flow in regimes
│  in which the toroidal velocity is dominant over the poloidal velocity
├─ ngrid{Int64} ➡ 101 Resolution of the core_profiles grid
├─ bulk{Symbol} ➡ :D Hydrogenic bulk ion species. Use :D_T for unbundled :D and :T species. [:H, :D, :DT, :D_T]
├─ impurity{Symbol} ➡ :C Seeding impurity ion species (fraction calculated to match zeff given wall_impurity)
├─ wall_impurity{Symbol} ➡ missing Wall material impurity ion species
├─ wall_impurity_fraction{Float64} ➡ missing Wall impurity fraction n_wall/n_e
├─ helium_fraction{Float64} ➡ missing Helium density / electron density fraction
├─ ejima{Float64} ➡ 0.4 Ejima coefficient
├─ polarized_fuel_fraction{Float64} ➡ 0.0 Spin polarized fuel fraction
└─ ITB
   ├─ radius{Float64} ➡ missing Rho at which the ITB starts
   ├─ ne_width{Float64} ➡ missing Width of the electron density ITB
   ├─ ne_height_ratio{Float64} ➡ missing Height of the electron density ITB, expressed as the ratio of the density without ITB
   │  evaluated on axis
   ├─ Te_width{Float64} ➡ missing Width of the electron temperature ITB
   └─ Te_height_ratio{Float64} ➡ missing Height of the electron temperature ITB, expressed as the ratio of the temperature
      without ITB evaluated on axis

Modify ini — the physics starting point

ini.equilibrium.ip = 1.0E6        # plasma current [A]
ini.core_profiles.zeff = 2.0      # effective charge
ini.core_profiles.impurity = :C   # seeding impurity species

# density: absolute pedestal density (kept low to stay clear of the EC cutoff)
ini.core_profiles.ne_setting = :ne_ped
ini.core_profiles.ne_value = 4.0e19

ini.core_profiles.Te_core = 1.5e3
ini.core_profiles.Te_ped = 1e3

1000.0

Modify act — the models

act.ActorEquilibrium.model = :TEQUILA

# Aim the EC deposition location (this is an `act` parameter — the actuator
# aiming — not an `ini` parameter):
for actuator in act.ActorSimpleEC.actuator
    actuator.rho_0 = 0.1
end

# Pedestal from EPED, not evolved by the transport solver:
act.ActorPedestal.model = :EPED
act.ActorFluxMatcher.evolve_pedestal = false

# This is the TGLF NN that we use:
act.ActorTGLF.tglfnn_model = "sat3_em_d3d+mastu+nstx_azf-1"

# If instead you want to run the full TGLF model then:
#
# act.ActorTGLF.model = :TJLF # Julia version of TGLF

"sat3_em_d3d+mastu+nstx_azf-1"

Make sure to run less of it!

act.ActorFluxMatcher.max_iterations = 50

But we are not going to run with the full model as that would take too long

Initialize: ini → dd

dd = IMAS.dd();
FUSE.init(dd, ini, act);

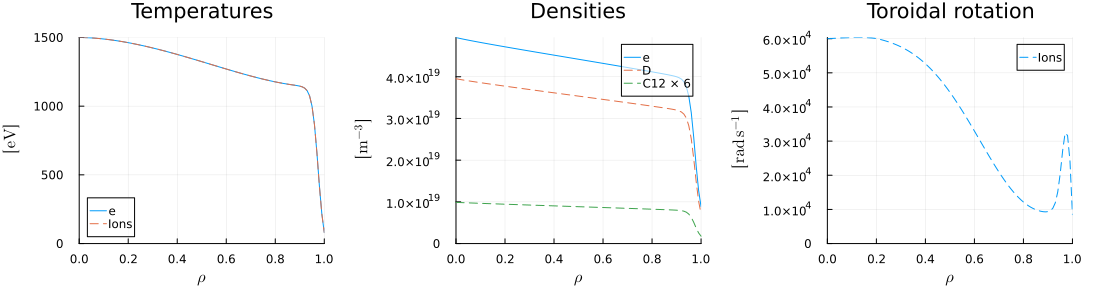

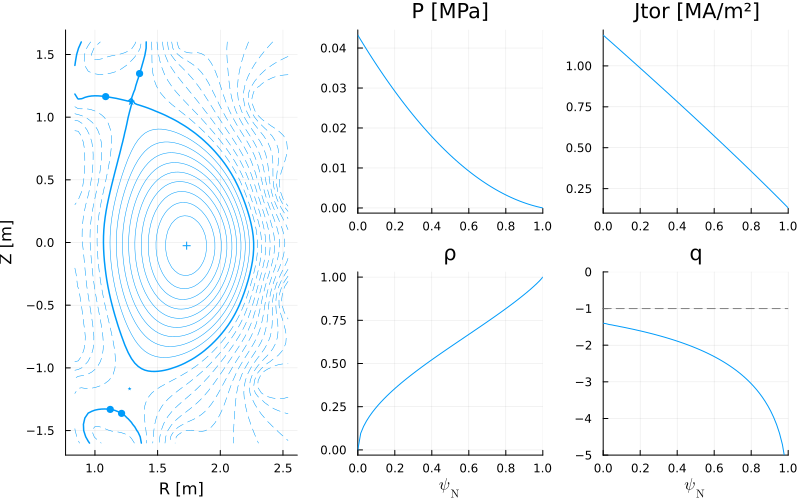

eq_plot_init = plot(dd.equilibrium)
core_profiles_plot_init = plot(dd.core_profiles)

display(core_profiles_plot_init)
display(eq_plot_init)

actors: CXbuild
actors: Sources
actors:  SimpleEC
actors:  SimpleNB
actors:  NeutralFueling

Run the stationary plasma

DIII-D already exists — no need for the power-plant machinery that ActorWholeFacility would drag in (sizing, blanket, balance of plant, costing...). ActorStationaryPlasma iterates equilibrium ⇄ transport ⇄ sources ⇄ current to a self-consistent stationary solution:

FUSE.ActorStationaryPlasma(dd, act);

# before vs after:

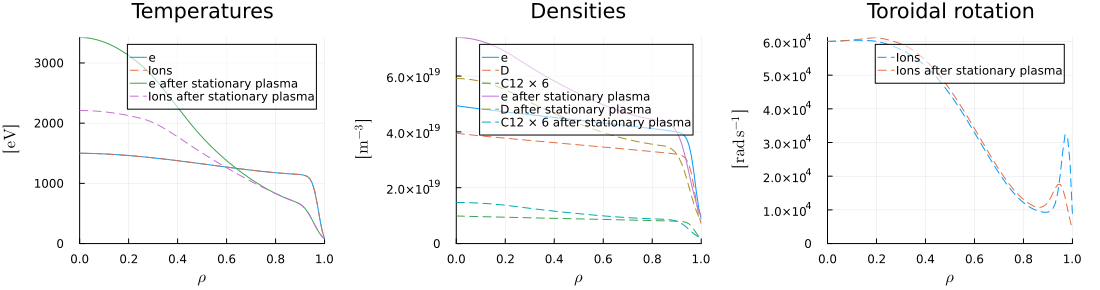

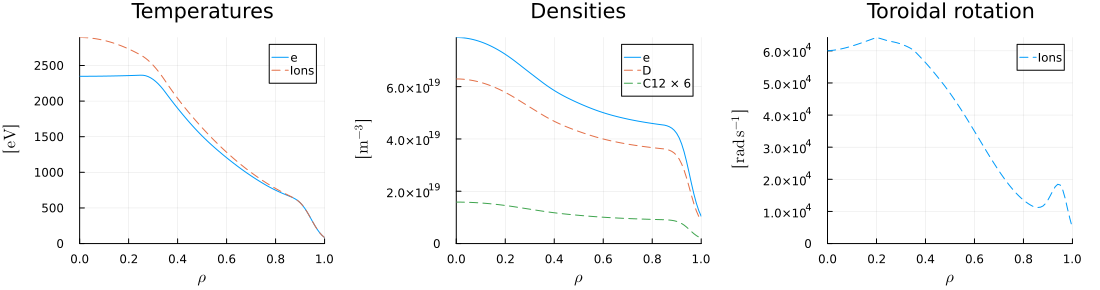

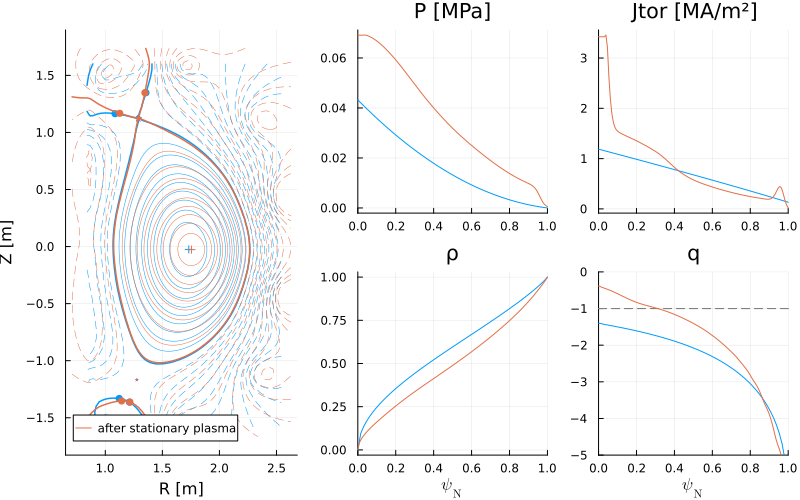

display(plot!(core_profiles_plot_init, dd.core_profiles, label=" after stationary plasma"))
display(plot!(eq_plot_init, dd.equilibrium, label=" after stationary plasma"))

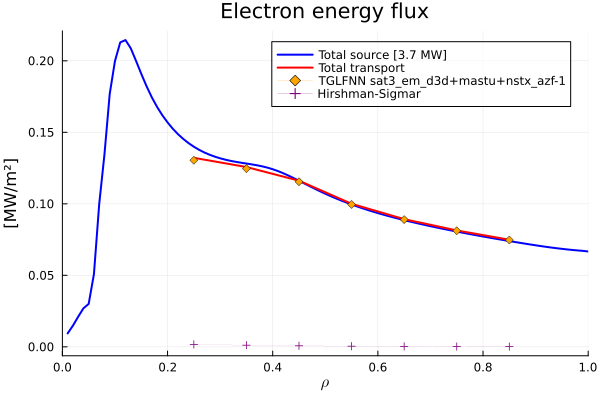

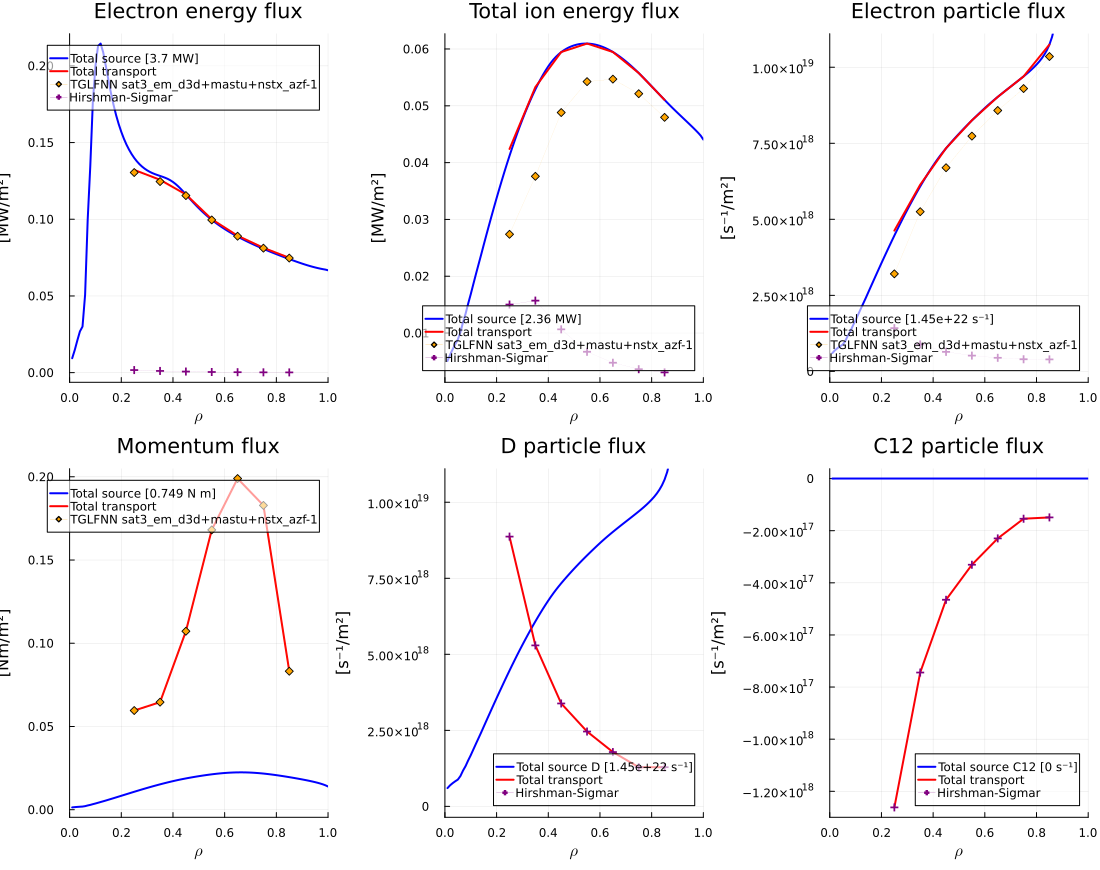

# Transport fluxes versus source for the Electron energy, Ion energy and electron particle flux

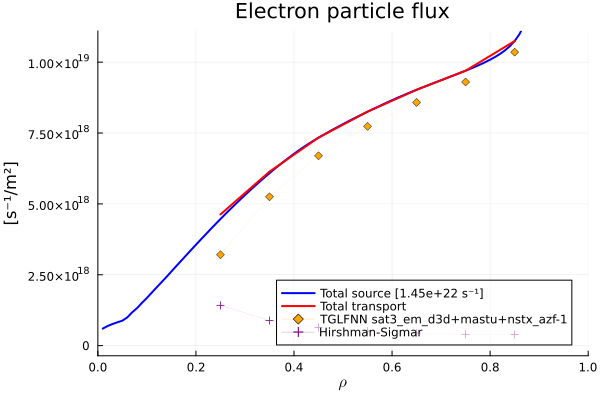

display(plot(dd.core_transport; only=1))

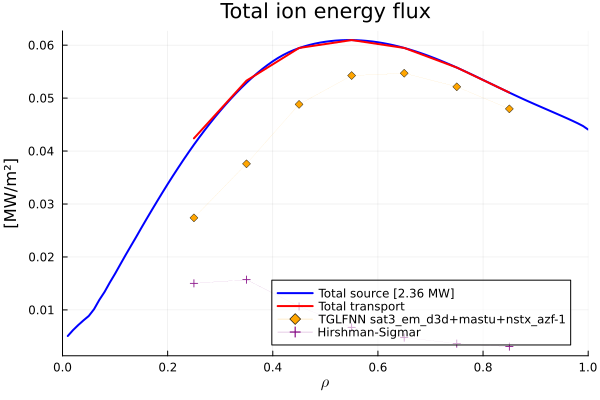

display(plot(dd.core_transport; only=2))
display(plot(dd.core_transport; only=3))

# what is our beta_normal?

actors: StationaryPlasma
actors:  --------------- 1/5
actors:  Sources
actors:   SimpleEC
actors:   SimpleNB
actors:   NeutralFueling
actors:  Pedestal
actors:   EPED
actors:  CoreTransport
actors:   FluxMatcher
actors:    FluxCalculator
actors:     TGLF
actors:     Neoclassical
actors:  Current
actors:   QED
actors:  SawteethSource
actors:  Equilibrium
actors:   TEQUILA
actors:  --------------- 1/5 @ 905.40%
actors:  Sources
actors:   SimpleEC
actors:   SimpleNB
actors:   NeutralFueling
actors:  Pedestal
actors:   EPED
actors:  CoreTransport
actors:   FluxMatcher
actors:    FluxCalculator
actors:     TGLF
actors:     Neoclassical
actors:  Current
actors:   QED
actors:  SawteethSource
actors:  Equilibrium
actors:   TEQUILA
actors:  --------------- 2/5 @ 603.13%
actors:  Sources
actors:   SimpleEC
actors:   SimpleNB
actors:   NeutralFueling
actors:  Pedestal
actors:   EPED
actors:  CoreTransport
actors:   FluxMatcher
actors:    FluxCalculator
actors:     TGLF
actors:     Neoclassical
actors:  Current
actors:   QED
actors:  SawteethSource
actors:  Equilibrium
actors:   TEQUILA
actors:  --------------- 3/5 @ 988.15%
actors:  Sources
actors:   SimpleEC
actors:   SimpleNB
actors:   NeutralFueling
actors:  Pedestal
actors:   EPED
actors:  CoreTransport
actors:   FluxMatcher
actors:    FluxCalculator
actors:     TGLF
actors:     Neoclassical
actors:  Current
actors:   QED
actors:  SawteethSource
actors:  Equilibrium
actors:   TEQUILA
actors:  --------------- 4/5 @ 667.67%
actors:  Sources
actors:   SimpleEC
actors:   SimpleNB
actors:   NeutralFueling
actors:  Pedestal
actors:   EPED
actors:  CoreTransport
actors:   FluxMatcher
actors:    FluxCalculator
actors:     TGLF
actors:     Neoclassical
actors:  Current
actors:   QED
actors:  SawteethSource
actors:  Equilibrium
actors:   TEQUILA
actors:  --------------- 5/5 @ 306.97%
┌ Warning: Max number of iterations (5) has been reached with convergence error of (1)[0.453, 0.302, 0.494, 0.334, 0.153](5) compared to threshold of 0.05
└ @ FUSE ~/d3dsummerschool/FUSE/src/actors/compound/stationary_plasma_actor.jl:237

IMAS.extract(dd)

GEOMETRY                               EQUILIBRIUM                            TEMPERATURES
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
R0 → 1.67 [m]                          B0 → -1.71 [T]                         Te0 → 3.42 [keV]
a → 0.599 [m]                          ip → 0.984 [MA]                        Ti0 → 2.21 [keV]
1/ϵ → 2.78                             q95 → -4.79                            <Te> → 1.39 [keV]
κ → 1.79                               <Bpol> → 0.226 [T]                     <Ti> → 1.17 [keV]
δ → 0.372                              βpol_MHD → 1.11                        Te0/<Te> → 2.46
ζ → -0.121                             βtor_MHD → 0.0206                      Ti0/<Ti> → 1.89
Volume → 18.8 [m³]                     βn_MHD → 2.13
Surface → 53.7 [m²]

DENSITIES                              PRESSURES                              TRANSPORT
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
ne0 → 7.38e+19 [m⁻³]                   P0 → 0.0679 [MPa]                      τe → 0.097 [s]
ne_ped → 3.67e+19 [m⁻³]                <P> → 0.0239 [MPa]                     τe_exp → 0.095 [s]
ne_line → 5.66e+19 [m⁻³]               P0/<P> → 2.85                          H98y2 → 1.08
<ne> → 4.76e+19 [m⁻³]                  βn → 2.14                              H98y2_exp → 1.08
ne0/<ne> → 1.55                        βn_th → 1.82                           Hds03 → 1.08
fGW → 0.648                                                                   Hds03_exp → 1.07
zeff_ped → 2                                                                  τα_thermalization → 0.176 [s]
<zeff> → 1.99                                                                 τα_slowing_down → 0.105 [s]
impurities → D C12

SOURCES                                EXHAUST                                CURRENTS
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
Pec → 3 [MW]                           Psol → 5.95 [MW]                       ip_bs_aux_ohm → 0.992 [MA]
rho0_ec → 0.08 [MW]                    PLH → 2.11 [MW]                        ip_ni → 0.479 [MA]
Pnbi → 3 [MW]                          PLH_FUSE → 4.19 [MW]                   ip_bs → 0.321 [MA]
Enbi1 → 0.08 [MeV]                     Bpol_omp → 0.336 [T]                   ip_aux → 0.158 [MA]
Pic → NaN [MW]                         λq → 3.15 [mm]                         ip_ohm → 0.513 [MA]
Plh → NaN [MW]                         qpol → 133 [MW/m²]                     ejima → 0.4
Paux_tot → 6 [MW]                      qpar → -514 [MW/m²]                    flattop → NaN [Hours]
Pα → 1.74e-05 [MW]                     P/R0 → 3.57 [MW/m]
Pohm → 0.139 [MW]                      PB/R0 → -6.1 [MW T/m]
Pheat → 6.14 [MW]                      PBp/R0 → 0.807 [MW T/m]
Prad_tot → -0.125 [MW]                 PBϵ/R0q95 → 0.457 [MW T/m]
                                       neutrons_peak → NaN [MW/m²]

BOP                                    BUILD                                  COSTING
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
Pfusion → 0 [MW]                       PF_material → copper                   capital_cost → NaN [$B]
Qfusion → 0                            TF_material → copper                   levelized_CoE → NaN [$/kWh]
thermal_cycle_type → rankine           OH_material → copper                   TF_of_total → NaN [%]
thermal_efficiency_plant → NaN [%]     TF_max_b → NaN [T]                     BOP_of_total → NaN [%]
thermal_efficiency_cycle → NaN [%]     OH_max_b → NaN [T]                     blanket_of_total → NaN [%]
power_electric_generated → NaN [MW]    TF_j_margin → NaN                      cryostat_of_total → NaN [%]
Pelectric_net → NaN [MW]               OH_j_margin → NaN
Qplant → NaN                           TF_stress_margin → NaN
TBR → NaN                              OH_stress_margin → NaN

Operational limits (the stability NN!)

Let's see if our idealized run stays within the no-wall limit with TroyonBetaNN. For each toroidal mode number n=1,2,3 it predicts the no-wall βₙ limit for THIS equilibrium shape and profiles. fraction = βₙ / βₙ_limit, so fraction < 1 means stable.

TroyonBetaNN is trained by CHEASE and MarsF [Y.Q. Liu, et al., PPCF (2020)]

act.ActorPlasmaLimits.models = [:beta_troyon_nn]
act.ActorPlasmaLimits.verbose = true
FUSE.ActorPlasmaLimits(dd, act);

actors: PlasmaLimits
actors:  TroyonBetaNN


act.ActorPlasmaLimits.models = [:beta_troyon_nn]

Some stability rules satisfy their limit threshold:
 64% of: βn < BetaTroyonNN n=1
 44% of: βn < BetaTroyonNN n=2
 48% of: βn < BetaTroyonNN n=3

Did the transport solver converge?

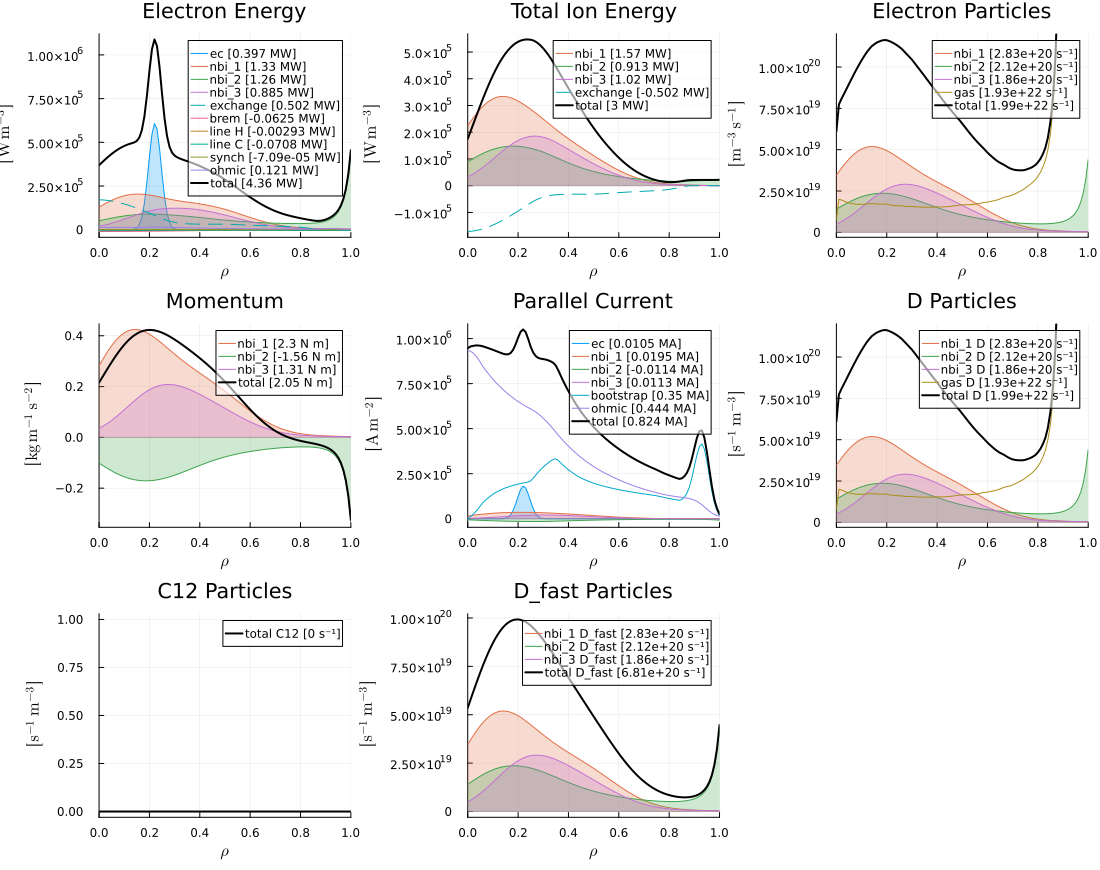

display(plot(dd.core_transport))

@show dd.transport_solver_numerics.convergence.time_step.data[1]


# This is the field we'll use as a constraint in the optimization to
# automatically reject unconverged runs:


# Save for later comparison:
file_name = joinpath(@__DIR__, "..", "runs", "d3d_single_run.json")



IMAS.imas2json(dd, file_name);

dd.transport_solver_numerics.convergence.time_step.data[1] = 4.810556065029565e-5

An idealized DIII-D CMOOP

Constrained Multi-Objective Optimization: take the single run from 01_d3d_single_run.jl, declare some ini parameters as actuators (with ↔ ranges), pick objectives and constraints, and let a genetic algorithm (SPEA2) explore the operational space.

Run with: julia –project=../FUSE ...or, with a sysimage (makesysimage.jl — currently Linux only, see README): julia -J ../fused3d.so –project=../FUSE The CMOOP workers inherit the sysimage automatically (Distributed spawns them with the master's julia command) — fast startup, shared image memory.

using FUSE
import IMAS
using Plots

Start from the same idealized DIII-D

ini, act = FUSE.case_parameters(:D3D, :default);

# We're setting up act the same as before:
act.ActorPedestal.model = :EPED
act.ActorFluxMatcher.evolve_pedestal = false

# This is the TGLF NN that we use:
act.ActorTGLF.tglfnn_model = "sat3_em_d3d+mastu+nstx_azf-1"
act.ActorPlasmaLimits.models = [:beta_troyon_nn]
act.ActorEquilibrium.model = :TEQUILA

:TEQUILA

Turn ini parameters into actuators

value ↔ [lower, upper] declares an optimization range; value ↔ (choice1, choice2) declares a categorical choice. Anything with a ↔ becomes a gene of the optimizer — everything else stays fixed.

# plasma current
ini.equilibrium.ip = ini.equilibrium.ip ↔ [0.6E6, 1.5E6]

# heating & current drive: the three beamlines and the gyrotrons
ini.nb_unit[1].power_launched = ini.nb_unit[1].power_launched ↔ [0.1E6, 3.3E6]  # co
ini.nb_unit[2].power_launched = ini.nb_unit[2].power_launched ↔ [0.1E6, 3.3E6]  # counter
ini.nb_unit[3].power_launched = ini.nb_unit[3].power_launched ↔ [0.1E6, 3.3E6]  # off-axis
ini.ec_launcher[1].power_launched = ini.ec_launcher[1].power_launched ↔ [0.1E6, 4.5E6]

# EC deposition location: aiming is really an act parameter
# (act.ActorSimpleEC.actuator[].rho_0) and only ini parameters can carry ↔
# ranges — so the gene rides on ini.ec_launcher[].rho_0 and our custom
# workflow (cmoop_definitions.jl) maps it onto act before each run
ini.ec_launcher[1].rho_0 = 0.4 ↔ [0.1, 0.8]

# density and impurities — absolute pedestal density (not Greenwald fraction),
# kept low to stay clear of the EC cutoff
ini.core_profiles.ne_setting = :ne_ped
ini.core_profiles.ne_value = 4.0e19 ↔ [3.5e19, 4.5e19]                        # pedestal density [m⁻³]
ini.core_profiles.zeff = ini.core_profiles.zeff ↔ [1.5, 3.5]
ini.core_profiles.impurity = ini.core_profiles.impurity ↔ (:C, :Ne)             # categorical!

# more ideas:
# ini.core_profiles.ne_sep_to_ped_ratio = ini.core_profiles.ne_sep_to_ped_ratio ↔ [0.15, 0.5]

SimulationParameters.OptParameterChoice{Symbol}(:C, missing, missing, 1, [:C, :Ne])

Requirements (used by some constraint functions)

ini.requirements.lh_power_threshold_fraction = 1.0   # stay in H-mode

1.0

Objectives and constraints

The custom functions live in cmoopdefinitions.jl — open it! It defines: maxprad, maxβn, maxfni and the stabletroyonnn constraint.

# (these definitions also live in cmoop_definitions.jl — that's the file the
#  CMOOP workers load, so keep the two in sync if you edit them here)

# Custom objective & constraint functions for the DIII-D CMOOP
#
# The stock libraries (IMAS.ObjectiveFunctionsLibrary / ConstraintFunctionsLibrary)
# are just collections of functions of `dd` — none of them talk about radiation
# or non-inductive fraction, so we define our own. Constructing an
# ObjectiveFunction/ConstraintFunction registers it in the library.
#
# NOTE: this file is `include`d on the master AND on every worker
# (via `@everywhere`) so that the workers can also evaluate these
# functions when building the results database.

import FUSE
import IMAS

# What the optimizer runs for every individual.
# DIII-D already exists, so no ActorWholeFacility (sizing, blanket, costing...):
# just the self-consistent stationary plasma + the operational limit models.
function d3d_stationary_workflow(ini::FUSE.ParametersAllInits, act::FUSE.ParametersAllActors)
    # act parameters are not scanned for ↔ optimization ranges — so the EC
    # aiming gene rides on ini (ini.ec_launcher[].rho_0) and we map it onto
    # the act-side actuator here, before running the actors
    for k in 1:min(length(ini.ec_launcher), length(act.ActorSimpleEC.actuator))
        if !ismissing(ini.ec_launcher[k], :rho_0)
            act.ActorSimpleEC.actuator[k].rho_0 = ini.ec_launcher[k].rho_0
        end
    end
    dd = IMAS.dd()
    FUSE.init(dd, ini, act)
    FUSE.ActorEquilibrium(dd,act;ip_from=:pulse_schedule);
    # the input ODS carried in ini.general.dd was only needed by init —
    # drop it so the per-case ini saved in the database is small and serializable
    ini.general.dd = missing
    FUSE.ActorStationaryPlasma(dd, act)
    FUSE.ActorPlasmaLimits(dd, act)
    return dd
end

IMAS.update_ObjectiveFunctionsLibrary!()
IMAS.update_ConstraintFunctionsLibrary!()

# maximize radiated power (radiative divertor operation)
# NB: IMAS convention — radiation sources are sinks, radiation_losses() < 0,
#     so the radiated power in positive MW is -radiation_losses()
IMAS.ObjectiveFunction(:max_prad, "MW",
    dd -> -IMAS.radiation_losses(dd.core_sources) / 1E6,
    Inf)

# maximize normalized beta (performance)
IMAS.ObjectiveFunction(:max_βn, "-",
    dd -> dd.equilibrium.time_slice[].global_quantities.beta_normal,
    Inf)

# maximize the non-inductive current fraction (steady-state operation)
IMAS.ObjectiveFunction(:max_fni, "-",
    dd -> IMAS.@ddtime(dd.summary.global_quantities.current_non_inductive.value) /
          dd.equilibrium.time_slice[].global_quantities.ip,
    Inf)

# constraint: stay below the TroyonBetaNN no-wall βₙ limit (n=1,2,3).
# The stability NN runs in ActorPlasmaLimits (part of our workflow below) and
# stores fraction = βₙ / βₙ_limit in dd.limits — we require the worst mode < 1
IMAS.ConstraintFunction(:stable_troyon_nn, "-",
    dd -> maximum([IMAS.@ddtime(model.fraction) for model in dd.limits.model if startswith(model.identifier.name, "BetaTroyonNN")]; init=0.0),
    <, 1.0)

stable_troyon_nn < 1.0 [-]

OFL = deepcopy(IMAS.ObjectiveFunctionsLibrary)
CFL = deepcopy(IMAS.ConstraintFunctionsLibrary)

# pick your fight — 2 objectives make a nice 2D Pareto front to look at
objective_functions = [OFL[:max_βn], OFL[:max_prad]]
# ... or: [OFL[:max_βn], OFL[:max_fni]], [OFL[:max_prad], OFL[:max_fni]], ...

constraint_functions = [
    CFL[:max_transport_error],             # transport solver must have converged
    CFL[:min_lh_power_threshold_fraction], # enough power over the separatrix to stay in H-mode
    CFL[:stable_troyon_nn],                # below the NN no-wall beta limit
]

println("== ACTUATORS ==")
display(FUSE.SimulationParameters.opt_parameters(ini))
println("\n== OBJECTIVE FUNCTIONS ==")
display(objective_functions)
println("\n== CONSTRAINT FUNCTIONS ==")
display(constraint_functions)

== ACTUATORS ==



9-element Vector{SimulationParameters.AbstractParameter}:
 ini.equilibrium.ip
- type: Float64
- units: A
- description: Plasma current (toroidal component). Positive sign means anti-clockwise when viewed from above.
- value: 1.08374265e6
- base: 1.08374265e6
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(1.08374265e6, 600000.0, 1.5e6, 1, missing)
- check: nothing
 ini.core_profiles.ne_value
- type: Float64
- units: -
- description: Value based on setup method
- value: 4.0e19
- base: 0.5625
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(4.0e19, 3.5e19, 4.5e19, 1, missing)
- check: #284
 ini.core_profiles.zeff
- type: Float64
- units: -
- description: Effective ion charge
- value: 2.0
- base: 2.0
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(2.0, 1.5, 3.5, 1, missing)
- check: #298
 ini.core_profiles.impurity
- type: Symbol
- units: -
- description: Seeding impurity ion species (fraction calculated to match zeff given wall_impurity)
- value: C
- base: C
- default: missing
- opt: SimulationParameters.OptParameterChoice{Symbol}(:C, missing, missing, 1, [:C, :Ne])
- check: nothing
 ini.nb_unit[1].power_launched
- type: Float64
- units: W
- description: Beam power
- value: 1.0e6
- base: 1.0e6
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(1.0e6, 100000.0, 3.3e6, 1, missing)
- check: #370
 ini.nb_unit[2].power_launched
- type: Float64
- units: W
- description: Beam power
- value: 1.0e6
- base: 1.0e6
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(1.0e6, 100000.0, 3.3e6, 1, missing)
- check: #370
 ini.nb_unit[3].power_launched
- type: Float64
- units: W
- description: Beam power
- value: 1.0e6
- base: 1.0e6
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(1.0e6, 100000.0, 3.3e6, 1, missing)
- check: #370
 ini.ec_launcher[1].power_launched
- type: Float64
- units: W
- description: EC launched power
- value: 3.0e6
- base: 3.0e6
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(3.0e6, 100000.0, 4.5e6, 1, missing)
- check: #416
 ini.ec_launcher[1].rho_0
- type: Float64
- units: -
- description: Desired radial location of the EC deposition (used by ActorSimpleEC)
- value: 0.4
- base: missing
- default: missing
- opt: SimulationParameters.OptParameterRange{Float64}(0.4, 0.1, 0.8, 1, missing)
- check: #418



== OBJECTIVE FUNCTIONS ==



2-element Vector{IMAS.ObjectiveFunction}:
 max_βn → Inf [-]
 max_prad → Inf [MW]



== CONSTRAINT FUNCTIONS ==



3-element Vector{IMAS.ConstraintFunction}:
 max_transport_error < 0.1 []
 min_lh_power_threshold_fraction > 1.0 [%]
 stable_troyon_nn < 1.0 [-]

Setup the study

sty is to a study what act is to an actor

sty = FUSE.study_parameters(:MultiObjectiveOptimizer);

sty.server = "localhost"    # or saga / omega / nersc ...
sty.n_workers = 4           # ~2-3 GB RAM each — don't oversubscribe your laptop
sty.save_folder = joinpath(@__DIR__, "..", "runs", "d3d_cmoop__summerschool")
mkpath(sty.save_folder)
# note: the default sty.file_save_mode = :safe_write requires an EMPTY folder —
# when re-running, point to a fresh folder (or set sty.file_save_mode = :append)

# workshop scale — enough to see the optimizer move (~15 min on a laptop).
# For a real study: population_size ≈ 300, number_of_generations ≈ 100, on a cluster.
sty.population_size = 8          # must be even
sty.number_of_generations = 3

3

Run it (commented out for the demo)

# study = FUSE.StudyMultiObjectiveOptimizer(sty, ini, act, constraint_functions, objective_functions);

# # what each individual runs: init → ActorStationaryPlasma → ActorPlasmaLimits
# # (defined in cmoop_definitions.jl; the default would be ActorWholeFacility)
# study.workflow = d3d_stationary_workflow

# # distributed computing: code must exist on every worker, not just here
# using Distributed
# @everywhere import FUSE
# @everywhere import IMAS
# @everywhere include($(joinpath(@__DIR__, "cmoop_definitions.jl")))

# FUSE.run(study);

Analyzing the DIII-D CMOOP results

The study left us a database: every individual the genetic algorithm tried is one row in extract.csv (plus the full dd's in database.h5). This is the same kind of database that powers fuseexplorer.com — there it's ~10⁵ power-plant runs from NERSC, here it's our workshop-sized DIII-D scan.

Run with: julia –project=../FUSE

using CSV
using DataFrames
using Statistics
using Plots
import FUSE
import IMAS

folder = joinpath(@__DIR__, "..", "runs", "d3d_cmoop_summerschool")
df = CSV.read(joinpath(folder, "extract.csv"), DataFrame)

# figures get saved alongside the study results
figdir = joinpath(folder, "figures")
mkpath(figdir)

println("total runs:  ", nrow(df))
println("successful:  ", sum(df.status .== "success"))
println("median time: ", round(median(skipmissing(df.elapsed_time)); digits=1), " s / run")

total runs:  40
successful:  33
median time: 6.2 s / run

Feasibility

Constraint columns hold the constraint "cost": 0.0 = satisfied.

constraints = [:max_transport_error, :min_lh_power_threshold_fraction, :stable_troyon_nn]
ok = df.status .== "success"
for c in constraints
    ok .&= coalesce.(df[!, c] .== 0.0, false)
    println(rpad(c, 35), " pass: ", sum(coalesce.(df[!, c] .== 0.0, false)), "/", nrow(df))
end
feasible = df[ok, :]
infeasible = df[.!ok, :]
println("feasible: ", nrow(feasible), "/", nrow(df))

max_transport_error                 pass: 32/40
min_lh_power_threshold_fraction     pass: 31/40
stable_troyon_nn                    pass: 30/40
feasible: 28/40

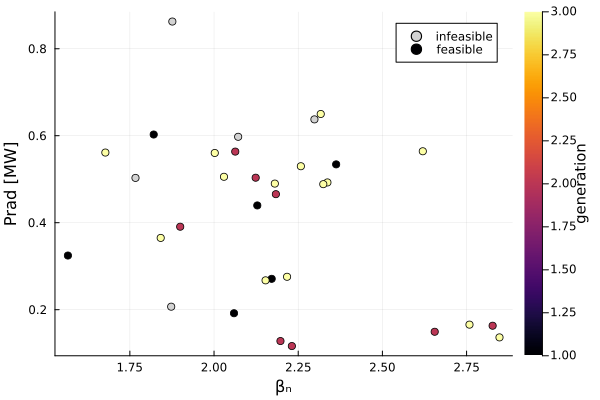

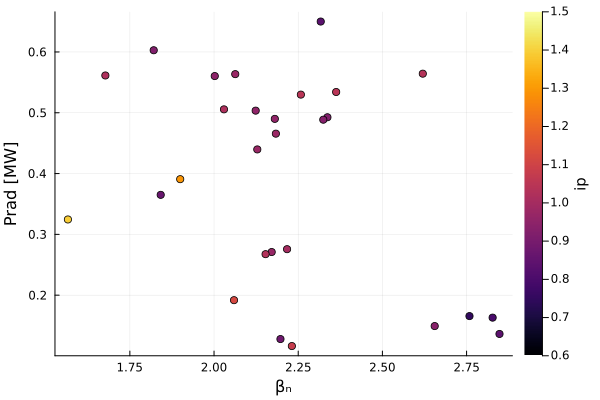

The objective space

Feasible points colored by generation — watch the optimizer walk towards the Pareto front:

# NB: extract's Prad_tot follows the IMAS sink convention (negative) —
# flip the sign to plot radiated power in positive MW
p = scatter(infeasible.βn, -infeasible.Prad_tot;
    color=:lightgray, label="infeasible", xlabel="βₙ", ylabel="Prad [MW]")
scatter!(p, feasible.βn, -feasible.Prad_tot;
    zcolor=feasible.gen, colorbar_title="generation", label="feasible")
display(p)
savefig(p, joinpath(figdir, "objective_space_by_generation.png"))

"/Users/tims/d3dsummerschool/runs/d3d_cmoop_summerschool/figures/objective_space_by_generation.png"

The Pareto front

FUSE.pareto_front expects "smaller is better", so negate what we maximize:

# maximize βₙ and maximize radiated power (= minimize the negative Prad_tot)
solutions = [[-row.βn, row.Prad_tot] for row in eachrow(feasible)]
ipareto = FUSE.pareto_front(solutions)
front = sort(feasible[ipareto, :], :βn)

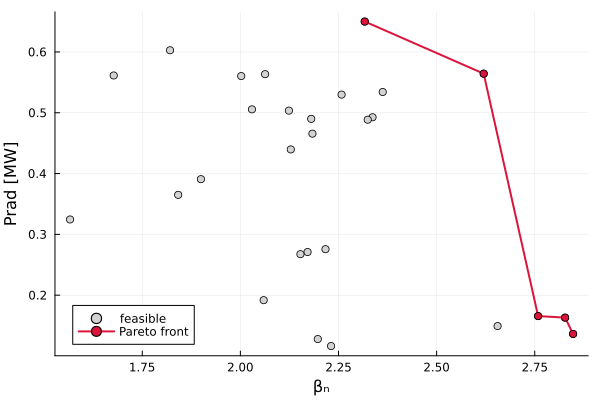

p = scatter(feasible.βn, -feasible.Prad_tot; color=:lightgray, label="feasible", xlabel="βₙ", ylabel="Prad [MW]")
plot!(p, front.βn, -front.Prad_tot; marker=:circle, lw=2, color=:crimson, label="Pareto front")
display(p)
savefig(p, joinpath(figdir, "pareto_front.png"))

"/Users/tims/d3dsummerschool/runs/d3d_cmoop_summerschool/figures/pareto_front.png"

How did it get there? Look at the actuators

Color the objective space by the knobs — this is where discoveries happen:

# colorbars clamped to the ranges we gave the optimizer
knob_ranges = [
    :Paux_tot => (0.4, 14.4),   # sum of the power gene bounds [MW]
    :ip => (0.6, 1.5),          # [MA]
    :zeff_ped => (1.5, 3.5),
]
for (knob, cl) in knob_ranges
    if String(knob) in names(feasible)

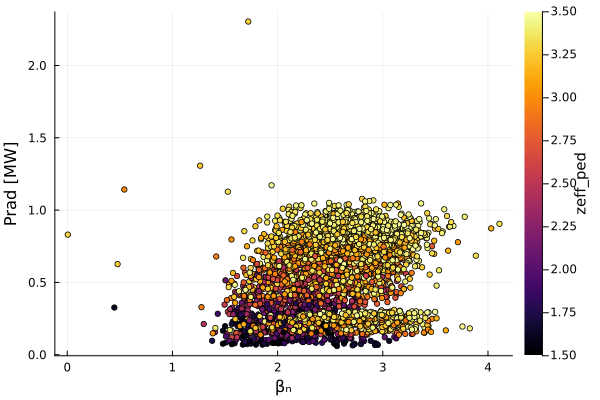

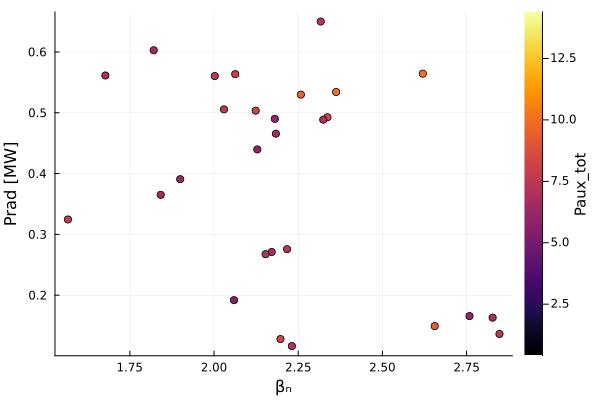

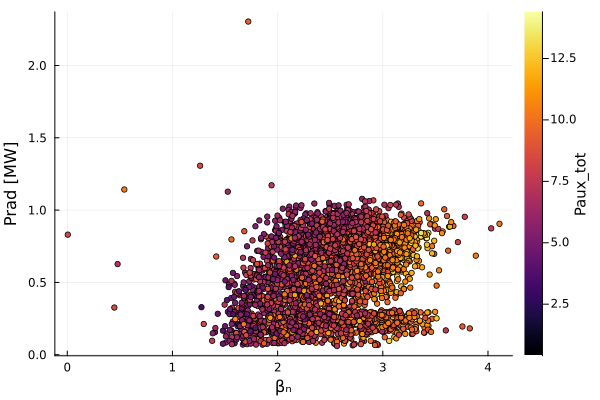

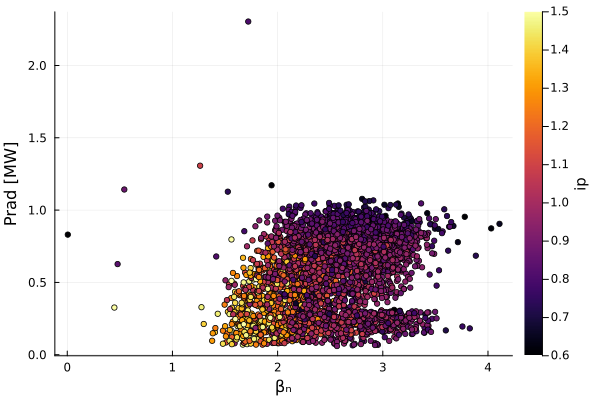

        local p = scatter(feasible.βn, -feasible.Prad_tot;
            zcolor=feasible[!, knob], clims=cl, colorbar_title=string(knob),
            xlabel="βₙ", ylabel="Prad [MW]", label="")
        display(p)
        savefig(p, joinpath(figdir, "objective_space_by_$(knob).png"))
    end
end

Which knobs got us here? Recover the genes

The colorings above used outputs that mirror knobs. But the actual gene values (e.g. the EC aiming ρ₀ — invisible in the outputs) live in each case's stored ini. The database keeps everything: dd, ini, act, logs.

db = FUSE.load_study_database(joinpath(folder, "database.h5"), String.(feasible.gparent); pattern=r"ini")
rho0 = [item.ini.ec_launcher[1].rho_0 for item in db.items]

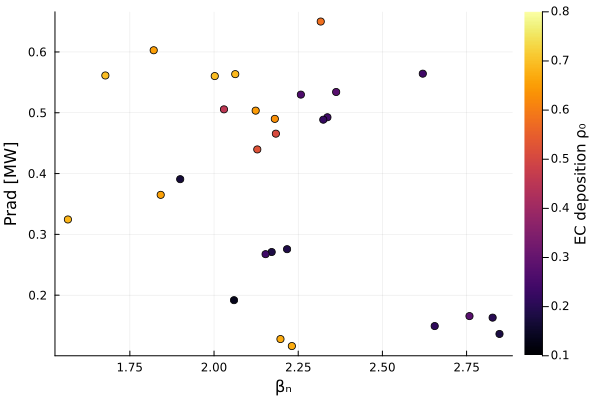

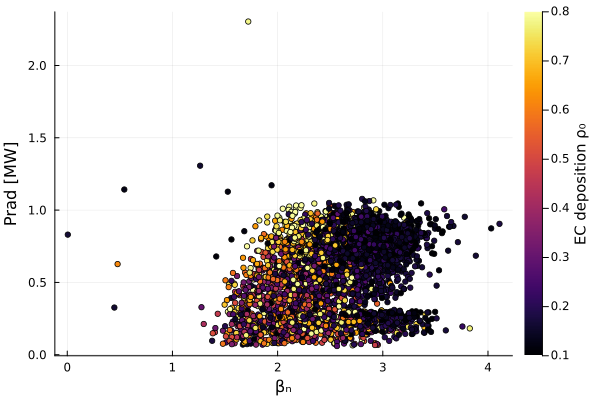

p = scatter(feasible.βn, -feasible.Prad_tot;
    zcolor=rho0, clims=(0.1, 0.8), colorbar_title="EC deposition ρ₀",
    xlabel="βₙ", ylabel="Prad [MW]", label="")
display(p)
savefig(p, joinpath(figdir, "objective_space_by_ec_rho0.png"))

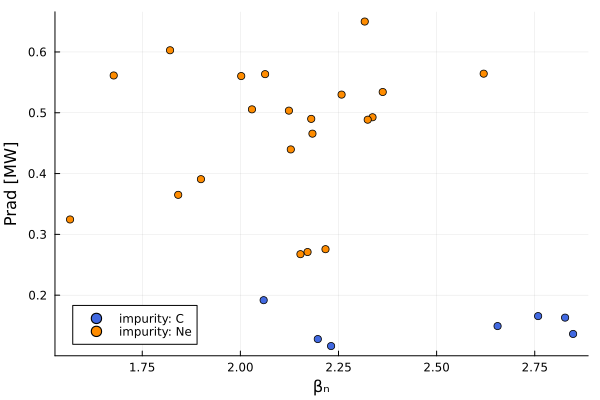

# ...and the categorical gene: which impurity did the optimizer pick where?

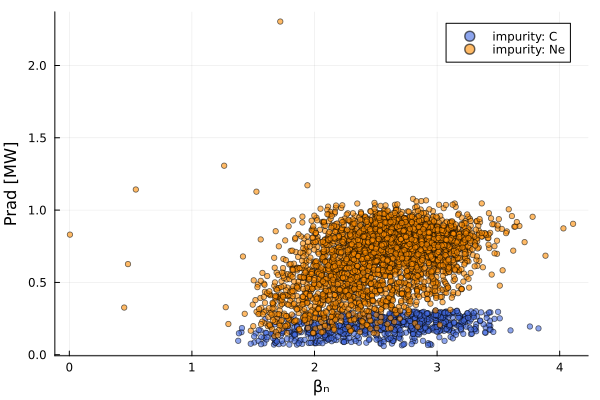

imp = [string(item.ini.core_profiles.impurity) for item in db.items]
p = plot(; xlabel="βₙ", ylabel="Prad [MW]")
for (species, color) in (("C", :royalblue), ("Ne", :darkorange))
    sel = imp .== species
    scatter!(p, feasible.βn[sel], -feasible.Prad_tot[sel]; color, label="impurity: $species")
end
display(p)
savefig(p, joinpath(figdir, "objective_space_by_impurity.png"))

"/Users/tims/d3dsummerschool/runs/d3d_cmoop_summerschool/figures/objective_space_by_impurity.png"

Deep-dive a single individual

Pick a Pareto-front point and reload the entire simulation:

best = front[end, :]   # highest βₙ on the front
println("best individual: ", best.gparent)
db1 = FUSE.load_study_database(joinpath(folder, "database.h5"), String(best.gparent))
dd_best = db1.items[1].dd

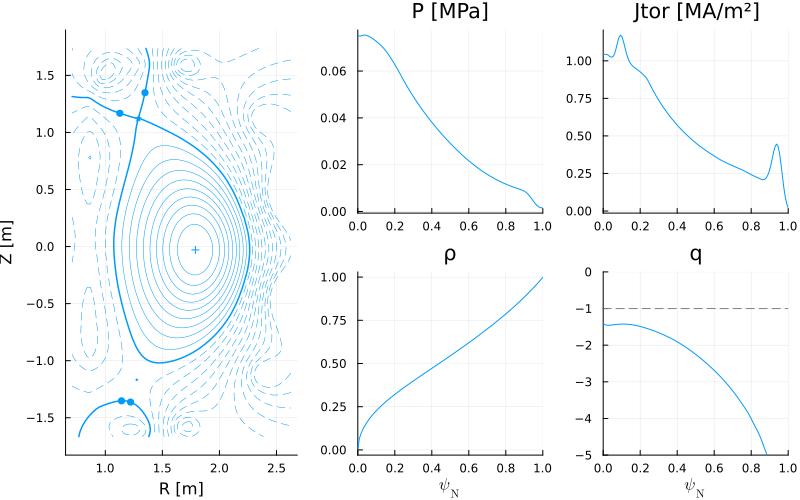

p = plot(dd_best.equilibrium)
display(p)
savefig(p, joinpath(figdir, "best_equilibrium.png"))

p = plot(dd_best.core_profiles)
display(p)
savefig(p, joinpath(figdir, "best_core_profiles.png"))

p = plot(dd_best.core_sources)
display(p)
savefig(p, joinpath(figdir, "best_core_sources.png"))

IMAS.extract(dd_best)

best individual: /gen3/case13

GEOMETRY                               EQUILIBRIUM                            TEMPERATURES
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
R0 → 1.67 [m]                          B0 → -1.71 [T]                         Te0 → 2.35 [keV]
a → 0.599 [m]                          ip → 0.836 [MA]                        Ti0 → 2.89 [keV]
1/ϵ → 2.78                             q95 → -5.95                            <Te> → 1.19 [keV]
κ → 1.79                               <Bpol> → 0.192 [T]                     <Ti> → 1.28 [keV]
δ → 0.372                              βpol_MHD → 1.74                        Te0/<Te> → 1.97
ζ → -0.121                             βtor_MHD → 0.0234                      Ti0/<Ti> → 2.25
Volume → 18.9 [m³]                     βn_MHD → 2.84
Surface → 53.7 [m²]

DENSITIES                              PRESSURES                              TRANSPORT
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
ne0 → 7.88e+19 [m⁻³]                   P0 → 0.07 [MPa]                        τe → 0.0761 [s]
ne_ped → 4.09e+19 [m⁻³]                <P> → 0.027 [MPa]                      τe_exp → 0.0747 [s]
ne_line → 5.8e+19 [m⁻³]                P0/<P> → 2.59                          H98y2 → 1.13
<ne> → 4.93e+19 [m⁻³]                  βn → 2.85                              H98y2_exp → 1.13
ne0/<ne> → 1.6                         βn_th → 2.08                           Hds03 → 1.08
fGW → 0.781                                                                   Hds03_exp → 1.07
zeff_ped → 2                                                                  τα_thermalization → 0.107 [s]
<zeff> → 2                                                                    τα_slowing_down → 0.0575 [s]
impurities → D C12

SOURCES                                EXHAUST                                CURRENTS
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
Pec → 0.397 [MW]                       Psol → 7.36 [MW]                       ip_bs_aux_ohm → 0.846 [MA]
rho0_ec → 0.22 [MW]                    PLH → 2.15 [MW]                        ip_ni → 0.396 [MA]
Pnbi → 7.12 [MW]                       PLH_FUSE → 4.26 [MW]                   ip_bs → 0.353 [MA]
Enbi1 → 0.08 [MeV]                     Bpol_omp → 0.301 [T]                   ip_aux → 0.0425 [MA]
Pic → NaN [MW]                         λq → 3.47 [mm]                         ip_ohm → 0.45 [MA]
Plh → NaN [MW]                         qpol → 149 [MW/m²]                     ejima → 0.4
Paux_tot → 7.52 [MW]                   qpar → -641 [MW/m²]                    flattop → NaN [Hours]
Pα → 4.24e-05 [MW]                     P/R0 → 4.41 [MW/m]
Pohm → 0.121 [MW]                      PB/R0 → -7.54 [MW T/m]
Pheat → 7.64 [MW]                      PBp/R0 → 0.849 [MW T/m]
Prad_tot → -0.136 [MW]                 PBϵ/R0q95 → 0.456 [MW T/m]
                                       neutrons_peak → NaN [MW/m²]

BOP                                    BUILD                                  COSTING
───────────────────────────────────    ───────────────────────────────────    ───────────────────────────────────
Pfusion → 0 [MW]                       PF_material → copper                   capital_cost → NaN [$B]
Qfusion → 0                            TF_material → copper                   levelized_CoE → NaN [$/kWh]
thermal_cycle_type → rankine           OH_material → copper                   TF_of_total → NaN [%]
thermal_efficiency_plant → NaN [%]     TF_max_b → NaN [T]                     BOP_of_total → NaN [%]
thermal_efficiency_cycle → NaN [%]     OH_max_b → NaN [T]                     blanket_of_total → NaN [%]
power_electric_generated → NaN [MW]    TF_j_margin → NaN                      cryostat_of_total → NaN [%]
Pelectric_net → NaN [MW]               OH_j_margin → NaN
Qplant → NaN                           TF_stress_margin → NaN
TBR → NaN                              OH_stress_margin → NaN

The audience challenge: beat the optimizer!

Pick the actuators yourself — inside the same ranges the optimizer had — and let's see where YOUR shot lands in the objective space.

Run with: julia –project=../FUSE

using Plots
using CSV
using DataFrames
using FUSE
import IMAS

include(joinpath(@__DIR__, "cmoop_definitions.jl"))

stable_troyon_nn < 1.0 [-]

Your shot — pick values inside the optimizer's ranges!

ip       = 1.1E6      # plasma current [A]           range: [0.6E6, 1.5E6]
Pnbi_co  = 2.0E6      # co-current beam [W]          range: [0.1E6, 3.3E6]
Pnbi_ctr = 0.5E6      # counter-current beam [W]     range: [0.1E6, 3.3E6]
Pnbi_off = 1.0E6      # off-axis beam [W]            range: [0.1E6, 3.3E6]
Pec      = 3.0E6      # gyrotron power [W]           range: [0.1E6, 4.5E6]
ec_rho0  = 0.3        # EC deposition location ρ     range: [0.1, 0.8]
ne_ped   = 4.0e19     # pedestal density [m⁻³]       range: [3.5e19, 4.5e19]
zeff     = 2.0        # effective charge             range: [1.5, 3.5]
impurity = :C         # seeding impurity             choices: :C or :Ne
# (warning: dumping ALL the power into a low-current plasma is a good way
#  to disrupt — see note below)

:C

Set up the same idealized DIII-D the optimizer used

ini, act = FUSE.case_parameters(:D3D, :default);

act.ActorPedestal.model = :EPED
act.ActorFluxMatcher.evolve_pedestal = false
act.ActorStationaryPlasma.max_iterations = 3
act.ActorPlasmaLimits.models = [:beta_troyon_nn]
act.ActorEquilibrium.model = :TEQUILA
act.ActorTGLF.tglfnn_model = "sat3_em_d3d+mastu+nstx_azf-1"

act.ActorStationaryPlasma.verbose = true

ini.equilibrium.ip = ip
ini.nb_unit[1].power_launched = Pnbi_co
ini.nb_unit[2].power_launched = Pnbi_ctr
ini.nb_unit[3].power_launched = Pnbi_off
ini.ec_launcher[1].power_launched = Pec
ini.ec_launcher[1].rho_0 = ec_rho0
ini.core_profiles.ne_setting = :ne_ped
ini.core_profiles.ne_value = ne_ped
ini.core_profiles.zeff = zeff
ini.core_profiles.impurity = impurity
ini.requirements.lh_power_threshold_fraction = 1.0

1.0

Run it — exactly what the optimizer runs for every individual (~2 min)

NB: extreme picks (all the power into the lowest density...) can crash the simulation — congratulations, you disrupted the plasma! Pick again ;) (the optimizer hits these corners too — those individuals just get marked as failed and it moves on)

dd = d3d_stationary_workflow(ini, act);

Progress: 100%|███████████████████████████| Time: 0:01:09 ( 2.68  s/it)
            iteration (min 2): 3/3
   required convergence error: 0.05
          convergence history: [0.10338815417441714, 0.15765097572780387, 0.26937162755320804]
                        stage: N/A
                      Ip [MA]: 1.082727696093039
                    Ti0 [keV]: 1.5256322533190432
                    Te0 [keV]: 1.5935779957609266
               ne0 [10²⁰ m⁻³]: 0.6222401316601909
                    max(zeff): 1.9971016770851704
                  ω0 [krad/s]: 60.0
actors: PlasmaLimits
actors:  TroyonBetaNN

Where did you land?

βn_you = dd.equilibrium.time_slice[].global_quantities.beta_normal
prad_you = -IMAS.radiation_losses(dd.core_sources) / 1E6

troyon_you = maximum([IMAS.@ddtime(model.fraction) for model in dd.limits.model if startswith(model.identifier.name, "BetaTroyonNN")]; init=0.0)
transport_error_you = IMAS.@ddtime(dd.transport_solver_numerics.convergence.time_step.data)

println("your shot:  βₙ = ", round(βn_you; digits=2), "   Prad = ", round(prad_you; digits=2), " MW")
println("stability:  βₙ/βₙ_limit(NN) = ", round(troyon_you; digits=2), troyon_you < 1 ? "  ✔ stable" : "  ✘ UNSTABLE")
println("converged:  transport error = ", round(transport_error_you; digits=3), transport_error_you < 0.1 ? "  ✔" : "  ✘ not converged")

your shot:  βₙ = 1.9   Prad = 0.12 MW
stability:  βₙ/βₙ_limit(NN) = 0.62  ✔ stable
converged:  transport error = 0.026  ✔

...and against the optimizer's database

folder = joinpath(@__DIR__, "..", "runs", "d3d_cmoop_summerschool")   # or d3d_cmoop_big!
df = CSV.read(joinpath(folder, "extract.csv"), DataFrame)

constraints = [:max_transport_error, :min_lh_power_threshold_fraction, :stable_troyon_nn]
ok = df.status .== "success"
for c in constraints
    global ok .&= coalesce.(df[!, c] .== 0.0, false)
end

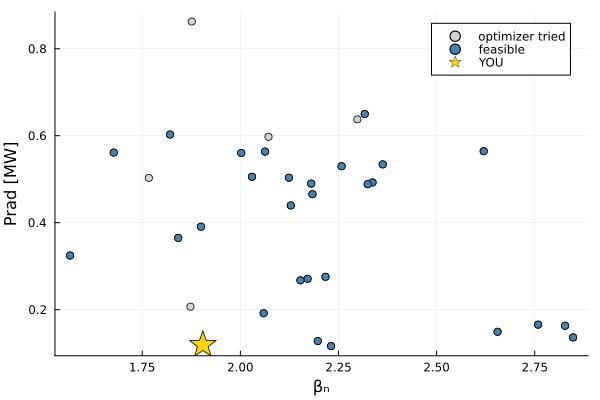

p = scatter(df.βn[df.status.=="success"], -df.Prad_tot[df.status.=="success"];
    color=:lightgray, label="optimizer tried", xlabel="βₙ", ylabel="Prad [MW]")
scatter!(p, df.βn[ok], -df.Prad_tot[ok]; color=:steelblue, label="feasible")
scatter!(p, [βn_you], [prad_you]; marker=:star5, markersize=14,
    color=troyon_you < 1 ? :gold : :red, label="YOU")
display(p)
savefig(p, joinpath(@__DIR__, "..", "runs", "audience_challenge.png"))

"/Users/tims/d3dsummerschool/runs/audience_challenge.png"

More data more better — the same CMOOP at scale

The exact same study, run overnight on a server with a sysimage (population 200 × 20 generations, 10 workers): ~7,800 evaluations instead of our 40. More data more better :)

folder_big = joinpath(@__DIR__, "..", "runs", "d3d_cmoop_big")
df_big = CSV.read(joinpath(folder_big, "extract.csv"), DataFrame)

ok_big = df_big.status .== "success"
for c in constraints
    global ok_big .&= coalesce.(df_big[!, c] .== 0.0, false)
end
feas_big = df_big[ok_big, :]

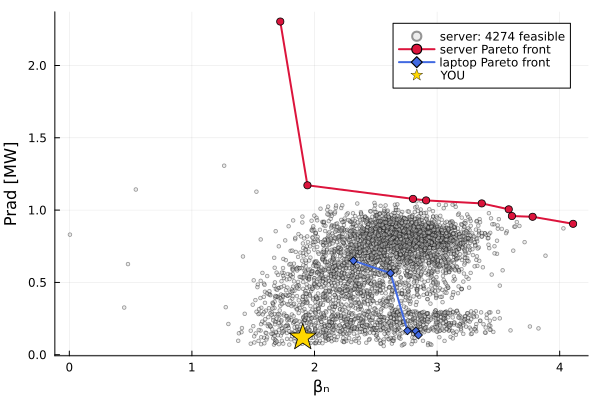

println("server run: ", nrow(df_big), " cases, ", nrow(feas_big), " feasible  (laptop: ", nrow(df), " / ", nrow(feasible), ")")

sol_big = [[-row.βn, row.Prad_tot] for row in eachrow(feas_big)]
front_big = sort(feas_big[FUSE.pareto_front(sol_big), :], :βn)

p = scatter(feas_big.βn, -feas_big.Prad_tot; color=:lightgray, ms=2, malpha=0.4,
    label="server: $(nrow(feas_big)) feasible", xlabel="βₙ", ylabel="Prad [MW]")
plot!(p, front_big.βn, -front_big.Prad_tot; marker=:circle, lw=2, color=:crimson,
    label="server Pareto front")
plot!(p, front.βn, -front.Prad_tot; marker=:diamond, lw=2, color=:royalblue,
    label="laptop Pareto front")
scatter!(p, [βn_you], [prad_you]; marker=:star5, markersize=14,
    color=troyon_you < 1 ? :gold : :red, label="YOU")
display(p)
savefig(p, joinpath(figdir, "pareto_laptop_vs_server.png"))

server run: 7855 cases, 4274 feasible  (laptop: 40 / 28)

"/Users/tims/d3dsummerschool/runs/d3d_cmoop_summerschool/figures/pareto_laptop_vs_server.png"

# the genes of the big run (extracted from the per-case inis in its database):
genes = CSV.read(joinpath(folder_big, "genes_big.csv"), DataFrame)
big = leftjoin(feas_big, genes; on=:gparent)

p = plot(; xlabel="βₙ", ylabel="Prad [MW]")
for (species, color) in (("C", :royalblue), ("Ne", :darkorange))
    sel = coalesce.(big.impurity .== species, false)
    scatter!(p, big.βn[sel], -big.Prad_tot[sel]; color, ms=3, malpha=0.6, label="impurity: $species")
end
display(p)
savefig(p, joinpath(figdir, "objective_space_by_impurity_big.png"))

p = scatter(big.βn, -big.Prad_tot; zcolor=big.ec_rho0, clims=(0.1, 0.8), ms=3,
    colorbar_title="EC deposition ρ₀", xlabel="βₙ", ylabel="Prad [MW]", label="")
display(p)
savefig(p, joinpath(figdir, "objective_space_by_ec_rho0_big.png"))

"/Users/tims/d3dsummerschool/runs/d3d_cmoop_summerschool/figures/objective_space_by_ec_rho0_big.png"

# all the actuator views, now on the full dataset
for (knob, cl) in knob_ranges
    if String(knob) in names(feas_big)
        local p = scatter(feas_big.βn, -feas_big.Prad_tot;
            zcolor=feas_big[!, knob], clims=cl, ms=3, colorbar_title=string(knob),
            xlabel="βₙ", ylabel="Prad [MW]", label="")
        display(p)
        savefig(p, joinpath(figdir, "objective_space_by_$(knob)_big.png"))
    end
end

The new age: physics models as public web APIs

EPED-NN (the same pedestal model the CMOOP used through ActorPedestal) is served as a public API at https://iter.fuseexplorer.com/EPED — no FUSE installation, no Julia, no GA account. Just HTTP.

Browse it: https://iter.fuseexplorer.com/EPED (interactive explorer) Self-docs: curl -s https://iter.fuseexplorer.com/EPED/api

Run with: julia –project=../FUSE (only needs JSON + Plots + curl)

import JSON
using Plots

The API documents itself

api_docs = JSON.parse(read(`curl -s https://iter.fuseexplorer.com/EPED/api`, String))
println(api_docs["description"], "\n")
for (name, spec) in api_docs["inputs"]
    println(rpad(name, 14), rpad(spec["unit"], 10), rpad(join(spec["range"], " … "), 14), spec["description"])
end

EPED-NN surrogate: predicts the H-mode pedestal height (total pressure) for a tokamak operating point, with an ensemble (5-network) uncertainty.

a             m         0.5 … 2.0     minor radius
betan         -         0.5 … 4       normalized beta, betaN
bt            T         2 … 8         vacuum toroidal magnetic field
delta         -         0.1 … 0.65    triangularity (delta95)
ip            MA        8 … 15        plasma current
kappa         -         1.2 … 2.5     elongation (kappa95)
m             amu       1 … 2.5       main ion mass (2.0=D, 2.5=DT)
neped         1e19 m^-3 1 … 20        pedestal-top electron density
nesep_ratio   -         0.05 … 0.6    separatrix-to-pedestal density ratio, ne_sep/ne_ped
r             m         1.5 … 7       major radius
tesep         eV        70 … 200      separatrix electron temperature
zeffped       -         0.8 … 4       effective charge at the pedestal, Zeff

One prediction = one POST

function eped_predict(; kw...)
    payload = JSON.json(Dict(kw...))
    return JSON.parse(read(`curl -s https://iter.fuseexplorer.com/EPED/predict -H "Content-Type: application/json" -d $payload`, String))
end

# a DIII-D-like point:
d3d = (a=0.56, betan=2.0, bt=2.0, delta=0.5, ip=1.0, kappa=1.8, m=2.0,
    neped=5.0, nesep_ratio=0.25, r=1.67, tesep=75.0, zeffped=2.0)
println(eped_predict(; d3d...))

# an ITER-like point:
iter = (a=2.0, betan=2.0, bt=5.3, delta=0.49, ip=15.0, kappa=1.85, m=2.5,
    neped=7.0, nesep_ratio=0.25, r=6.2, tesep=75.0, zeffped=1.5)
println(eped_predict(; iter...))

JSON.Object{String, Any}("pedestal_height_kPa" => 13.71, "uncertainty_kPa" => 0.15, "diamagnetic_model" => "H")
JSON.Object{String, Any}("pedestal_height_kPa" => 78.02, "uncertainty_kPa" => 0.52, "diamagnetic_model" => "H")

Parameter scans against a live model

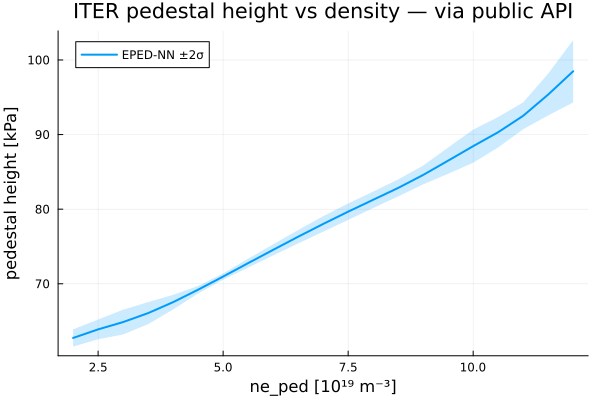

This is the point: a scan that used to require an account on a cluster and a batch queue is now a for-loop over HTTP.

nepeds = 2.0:0.5:12.0
results = [eped_predict(; iter..., neped) for neped in nepeds]
height = [r["pedestal_height_kPa"] for r in results]
σ = [r["uncertainty_kPa"] for r in results]

display(plot(nepeds, height; ribbon=2σ, fillalpha=0.2, lw=2, label="EPED-NN ±2σ",
    xlabel="ne_ped [10¹⁹ m⁻³]", ylabel="pedestal height [kPa]",
    title="ITER pedestal height vs density — via public API"))

Trust, but verify: uncertainty grows out of distribution

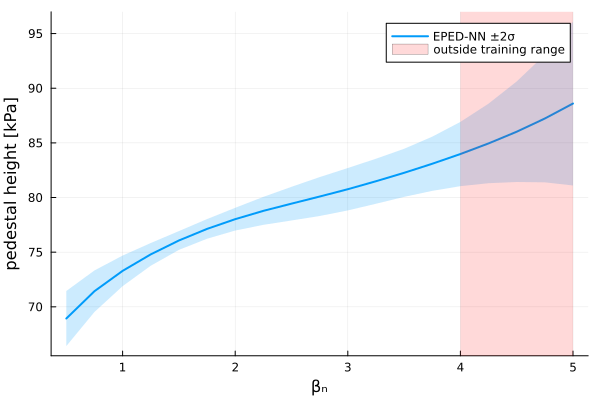

The docs give the training range for each input. Walk βₙ beyond it and watch the ensemble spread — the model tells you when to stop trusting it:

betans = 0.5:0.25:5.0
results = [eped_predict(; iter..., betan) for betan in betans]
height = [r["pedestal_height_kPa"] for r in results]
σ = [r["uncertainty_kPa"] for r in results]

p = plot(betans, height; ribbon=2σ, fillalpha=0.2, lw=2, label="EPED-NN ±2σ",
    xlabel="βₙ", ylabel="pedestal height [kPa]")
vspan!(p, [4.0, 5.0]; alpha=0.15, color=:red, label="outside training range")
display(p)

ip       = 1.1E6      # plasma current [A]           range: [0.6E6, 1.5E6]
Pnbi_co  = 2.0E6      # co-current beam [W]          range: [0.1E6, 3.3E6]
Pnbi_ctr = 0.5E6      # counter-current beam [W]     range: [0.1E6, 3.3E6]
Pnbi_off = 1.0E6      # off-axis beam [W]            range: [0.1E6, 3.3E6]
Pec      = 3.0E6      # gyrotron power [W]           range: [0.1E6, 4.5E6]
ec_rho0  = 0.3        # EC deposition location ρ     range: [0.1, 0.8]
ne_ped   = 4.0e19     # pedestal density [m⁻³]       range: [3.5e19, 4.5e19]
zeff     = 2.0        # effective charge             range: [1.5, 3.5]
impurity = :C         # seeding impurity             choices: :C or :Ne
# (warning: dumping ALL the power into a low-current plasma is a good way
#  to disrupt — see note below)

# Remember we are maximizing beta_normal and Prad

:C
